Build an Intelligent Multi-Tool AI Agent Interface Using Streamlit for Seamless Real-Time Interaction

In this tutorial, we will build a strong and interactive strength Flow The app that collects the capabilities of Langchain and Google Gemini API, and a set of advanced tools to create smart intelligence assistant. Using Streamlit’s intuitive interface, we will create a chat -based system that can search in the web, bring Wikipedia content, make accounts, remember the main details, and address the chat record, all in actual time. Whether we are developers, researchers, or just exploring artificial intelligence, this setting allows us to interact with a multi -agent system directly from the browser with the least symbol and maximum flexibility.
!pip install -q streamlit langchain langchain-google-genai langchain-community
!pip install -q pyngrok python-dotenv wikipedia duckduckgo-search
!npm install -g localtunnel
import streamlit as st
import os
from langchain_google_genai import ChatGoogleGenerativeAI
from langchain.agents import create_react_agent, AgentExecutor
from langchain.tools import Tool, WikipediaQueryRun, DuckDuckGoSearchRun
from langchain.memory import ConversationBufferWindowMemory
from langchain.prompts import PromptTemplate
from langchain.callbacks.streamlit import StreamlitCallbackHandler
from langchain_community.utilities import WikipediaAPIWrapper, DuckDuckGoSearchAPIWrapper
import asyncio
import threading
import time
from datetime import datetime
import json
We start installing all Python and Node.js needed to apply our AI assistant. This includes the flow of the front end, the Langchain for the logic of the agent, and tools like Wikipedia, Duckduckgo and NGROK/LOCALTUNNEL for external research and hosting. Once prepared, we import all stereotypes to start building a multi -tool -tools reactive AI.
GOOGLE_API_KEY = "Use Your API Key Here"
NGROK_AUTH_TOKEN = "Use Your Auth Token Here"
os.environ["GOOGLE_API_KEY"] = GOOGLE_API_KEY
Next, we create our environment by setting the Google Gemini API key and NGROK authentication code. We set these credentials for the variables and set Google_API_KEY so that the Langchain agent can safely access the Gemini model during implementation.
class InnovativeAgentTools:
"""Advanced tool collection for the multi-agent system"""
@staticmethod
def get_calculator_tool():
def calculate(expression: str) -> str:
"""Calculate mathematical expressions safely"""
try:
allowed_chars = set('0123456789+-*/.() ')
if all(c in allowed_chars for c in expression):
result = eval(expression)
return f"Result: {result}"
else:
return "Error: Invalid mathematical expression"
except Exception as e:
return f"Calculation error: {str(e)}"
return Tool(
name="Calculator",
func=calculate,
description="Calculate mathematical expressions. Input should be a valid math expression."
)
@staticmethod
def get_memory_tool(memory_store):
def save_memory(key_value: str) -> str:
"""Save information to memory"""
try:
key, value = key_value.split(":", 1)
memory_store[key.strip()] = value.strip()
return f"Saved '{key.strip()}' to memory"
except:
return "Error: Use format 'key: value'"
def recall_memory(key: str) -> str:
"""Recall information from memory"""
return memory_store.get(key.strip(), f"No memory found for '{key}'")
return [
Tool(name="SaveMemory", func=save_memory,
description="Save information to memory. Format: 'key: value'"),
Tool(name="RecallMemory", func=recall_memory,
description="Recall saved information. Input: key to recall")
]
@staticmethod
def get_datetime_tool():
def get_current_datetime(format_type: str = "full") -> str:
"""Get current date and time"""
now = datetime.now()
if format_type == "date":
return now.strftime("%Y-%m-%d")
elif format_type == "time":
return now.strftime("%H:%M:%S")
else:
return now.strftime("%Y-%m-%d %H:%M:%S")
return Tool(
name="DateTime",
func=get_current_datetime,
description="Get current date/time. Options: 'date', 'time', or 'full'"
)
Here, we define the Innovativeagenttools category to provide artificial intelligence agent with specialized capabilities. We implement tools such as the calculator to evaluate safe expression, memory tools to preserve and remember information through turns, and the history and time tool to bring in the current history and time. These tools allow our artificial intelligence agent of the mind, remember, and respond to context, such as a real assistant. verify Full notebook here
class MultiAgentSystem:
"""Innovative multi-agent system with specialized capabilities"""
def __init__(self, api_key: str):
self.llm = ChatGoogleGenerativeAI(
model="gemini-pro",
google_api_key=api_key,
temperature=0.7,
convert_system_message_to_human=True
)
self.memory_store = {}
self.conversation_memory = ConversationBufferWindowMemory(
memory_key="chat_history",
k=10,
return_messages=True
)
self.tools = self._initialize_tools()
self.agent = self._create_agent()
def _initialize_tools(self):
"""Initialize all available tools"""
tools = []
tools.extend([
DuckDuckGoSearchRun(api_wrapper=DuckDuckGoSearchAPIWrapper()),
WikipediaQueryRun(api_wrapper=WikipediaAPIWrapper())
])
tools.append(InnovativeAgentTools.get_calculator_tool())
tools.append(InnovativeAgentTools.get_datetime_tool())
tools.extend(InnovativeAgentTools.get_memory_tool(self.memory_store))
return tools
def _create_agent(self):
"""Create the ReAct agent with advanced prompt"""
prompt = PromptTemplate.from_template("""
🤖 You are an advanced AI assistant with access to multiple tools and persistent memory.
AVAILABLE TOOLS:
{tools}
TOOL USAGE FORMAT:
- Think step by step about what you need to do
- Use Action: tool_name
- Use Action Input: your input
- Wait for Observation
- Continue until you have a final answer
MEMORY CAPABILITIES:
- You can save important information using SaveMemory
- You can recall previous information using RecallMemory
- Always try to remember user preferences and context
CONVERSATION HISTORY:
{chat_history}
CURRENT QUESTION: {input}
REASONING PROCESS:
{agent_scratchpad}
Begin your response with your thought process, then take action if needed.
""")
agent = create_react_agent(self.llm, self.tools, prompt)
return AgentExecutor(
agent=agent,
tools=self.tools,
memory=self.conversation_memory,
verbose=True,
handle_parsing_errors=True,
max_iterations=5
)
def chat(self, message: str, callback_handler=None):
"""Process user message and return response"""
try:
if callback_handler:
response = self.agent.invoke(
{"input": message},
{"callbacks": [callback_handler]}
)
else:
response = self.agent.invoke({"input": message})
return response["output"]
except Exception as e:
return f"Error processing request: {str(e)}"
In this section, we build the essence of our application, the multi -part system category. Here, we combine the Gemini Pro model using Langchain and prepare all the basic tools, including search, memory and calculator functions. We create a RACT worker using a dedicated router that directs the use of tools and processing memory. Finally, we define the chat method that allows the agent to process the user’s entry, call tools when necessary, and create smart responses and trained in the context. verify Full notebook here
def create_streamlit_app():
"""Create the innovative Streamlit application"""
st.set_page_config(
page_title="🚀 Advanced LangChain Agent with Gemini",
page_icon="🤖",
layout="wide",
initial_sidebar_state="expanded"
)
st.markdown("""
""", unsafe_allow_html=True)
st.markdown("""
Powered by LangChain + Gemini API + Streamlit
""", unsafe_allow_html=True)
with st.sidebar:
st.header("🔧 Configuration")
api_key = st.text_input(
"🔑 Google AI API Key",
type="password",
value=GOOGLE_API_KEY if GOOGLE_API_KEY != "your-gemini-api-key-here" else "",
help="Get your API key from https://ai.google.dev/"
)
if not api_key:
st.error("Please enter your Google AI API key to continue")
st.stop()
st.success("✅ API Key configured")
st.header("🤖 Agent Capabilities")
st.markdown("""
- 🔍 **Web Search** (DuckDuckGo)
- 📚 **Wikipedia Lookup**
- 🧮 **Mathematical Calculator**
- 🧠 **Persistent Memory**
- 📅 **Date & Time**
- 💬 **Conversation History**
""")
if 'agent_system' in st.session_state:
st.header("🧠 Memory Store")
memory = st.session_state.agent_system.memory_store
if memory:
for key, value in memory.items():
st.markdown(f"""
{key}: {value}
""", unsafe_allow_html=True)
else:
st.info("No memories stored yet")
if 'agent_system' not in st.session_state:
with st.spinner("🔄 Initializing Advanced Agent System..."):
st.session_state.agent_system = MultiAgentSystem(api_key)
st.success("✅ Agent System Ready!")
st.header("💬 Interactive Chat")
if 'messages' not in st.session_state:
st.session_state.messages = [{
"role": "assistant",
"content": """🤖 Hello! I'm your advanced AI assistant powered by Gemini. I can:
• Search the web and Wikipedia for information
• Perform mathematical calculations
• Remember important information across our conversation
• Provide current date and time
• Maintain conversation context
Try asking me something like:
- "Calculate 15 * 8 + 32"
- "Search for recent news about AI"
- "Remember that my favorite color is blue"
- "What's the current time?"
"""
}]
for message in st.session_state.messages:
with st.chat_message(message["role"]):
st.markdown(message["content"])
if prompt := st.chat_input("Ask me anything..."):
st.session_state.messages.append({"role": "user", "content": prompt})
with st.chat_message("user"):
st.markdown(prompt)
with st.chat_message("assistant"):
callback_handler = StreamlitCallbackHandler(st.container())
with st.spinner("🤔 Thinking..."):
response = st.session_state.agent_system.chat(prompt, callback_handler)
st.markdown(f"""
{response}
""", unsafe_allow_html=True)
st.session_state.messages.append({"role": "assistant", "content": response})
st.header("💡 Example Queries")
col1, col2, col3 = st.columns(3)
with col1:
if st.button("🔍 Search Example"):
example = "Search for the latest developments in quantum computing"
st.session_state.example_query = example
with col2:
if st.button("🧮 Math Example"):
example = "Calculate the compound interest on $1000 at 5% for 3 years"
st.session_state.example_query = example
with col3:
if st.button("🧠 Memory Example"):
example = "Remember that I work as a data scientist at TechCorp"
st.session_state.example_query = example
if 'example_query' in st.session_state:
st.info(f"Example query: {st.session_state.example_query}")
In this section, we collect everything by creating an interactive web interface using Stiplelit. We configure the application planning, identify the custom CSS patterns, prepare the sidebar to enter API keys and create the possibilities of the agent. We prepare a multi -agent system, maintain the messaging record, and enable the chat interface that allows users to interact in actual time. To facilitate their exploration, we also offer an example of research, mathematics and memory information, all in a beautiful user interface on their design. verify Full notebook here

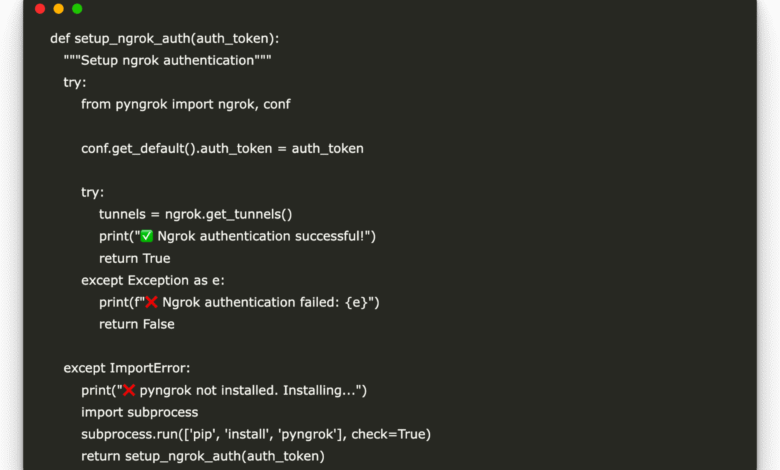

def setup_ngrok_auth(auth_token):
"""Setup ngrok authentication"""
try:
from pyngrok import ngrok, conf
conf.get_default().auth_token = auth_token
try:
tunnels = ngrok.get_tunnels()
print("✅ Ngrok authentication successful!")
return True
except Exception as e:
print(f"❌ Ngrok authentication failed: {e}")
return False
except ImportError:
print("❌ pyngrok not installed. Installing...")
import subprocess
subprocess.run(['pip', 'install', 'pyngrok'], check=True)
return setup_ngrok_auth(auth_token)
def get_ngrok_token_instructions():
"""Provide instructions for getting ngrok token"""
return """
🔧 NGROK AUTHENTICATION SETUP:
1. Sign up for an ngrok account:
- Visit: https://dashboard.ngrok.com/signup
- Create a free account
2. Get your authentication token:
- Go to: https://dashboard.ngrok.com/get-started/your-authtoken
- Copy your authtoken
3. Replace 'your-ngrok-auth-token-here' in the code with your actual token
4. Alternative methods if ngrok fails:
- Use Google Colab's built-in public URL feature
- Use localtunnel: !npx localtunnel --port 8501
- Use serveo.net: !ssh -R 80:localhost:8501 serveo.net
"""
Here, we created an auxiliary job for NGROK authentication, which allows us to expose our local application on the Internet. We use the Pyngrok Library to create the authentication and verification code. If the distinctive symbol is missing or inaccurate, we offer detailed guidelines on how to get one and suggest alternative ways of the tunnel, such as Localtunnel or Servo, which makes it easy for us to host our application and share us from environments like Google Colab.
def main():
"""Main function to run the application"""
try:
create_streamlit_app()
except Exception as e:
st.error(f"Application error: {str(e)}")
st.info("Please check your API key and try refreshing the page")
This main function () works as an entry point for our application. We simply call Create_streamlit_App () to launch the full interface. If anything wrong happens, such as the lost API key or a failed tool, then we pick up the error safely and display a useful message, making sure that the user knows how to recover and follow the application smoothly.
def run_in_colab():
"""Run the application in Google Colab with proper ngrok setup"""
print("🚀 Starting Advanced LangChain Agent Setup...")
if NGROK_AUTH_TOKEN == "your-ngrok-auth-token-here":
print("⚠️ NGROK_AUTH_TOKEN not configured!")
print(get_ngrok_token_instructions())
print("🔄 Attempting alternative tunnel methods...")
try_alternative_tunnels()
return
print("📦 Installing required packages...")
import subprocess
packages = [
'streamlit',
'langchain',
'langchain-google-genai',
'langchain-community',
'wikipedia',
'duckduckgo-search',
'pyngrok'
]
for package in packages:
try:
subprocess.run(['pip', 'install', package], check=True, capture_output=True)
print(f"✅ {package} installed")
except subprocess.CalledProcessError:
print(f"⚠️ Failed to install {package}")
app_content=""'
import streamlit as st
import os
from langchain_google_genai import ChatGoogleGenerativeAI
from langchain.agents import create_react_agent, AgentExecutor
from langchain.tools import Tool, WikipediaQueryRun, DuckDuckGoSearchRun
from langchain.memory import ConversationBufferWindowMemory
from langchain.prompts import PromptTemplate
from langchain.callbacks.streamlit import StreamlitCallbackHandler
from langchain_community.utilities import WikipediaAPIWrapper, DuckDuckGoSearchAPIWrapper
from datetime import datetime
# Configuration - Replace with your actual keys
GOOGLE_API_KEY = "''' + GOOGLE_API_KEY + '''"
os.environ["GOOGLE_API_KEY"] = GOOGLE_API_KEY
class InnovativeAgentTools:
@staticmethod
def get_calculator_tool():
def calculate(expression: str) -> str:
try:
allowed_chars = set('0123456789+-*/.() ')
if all(c in allowed_chars for c in expression):
result = eval(expression)
return f"Result: {result}"
else:
return "Error: Invalid mathematical expression"
except Exception as e:
return f"Calculation error: {str(e)}"
return Tool(name="Calculator", func=calculate,
description="Calculate mathematical expressions. Input should be a valid math expression.")
@staticmethod
def get_memory_tool(memory_store):
def save_memory(key_value: str) -> str:
try:
key, value = key_value.split(":", 1)
memory_store[key.strip()] = value.strip()
return f"Saved '{key.strip()}' to memory"
except:
return "Error: Use format 'key: value'"
def recall_memory(key: str) -> str:
return memory_store.get(key.strip(), f"No memory found for '{key}'")
return [
Tool(name="SaveMemory", func=save_memory, description="Save information to memory. Format: 'key: value'"),
Tool(name="RecallMemory", func=recall_memory, description="Recall saved information. Input: key to recall")
]
@staticmethod
def get_datetime_tool():
def get_current_datetime(format_type: str = "full") -> str:
now = datetime.now()
if format_type == "date":
return now.strftime("%Y-%m-%d")
elif format_type == "time":
return now.strftime("%H:%M:%S")
else:
return now.strftime("%Y-%m-%d %H:%M:%S")
return Tool(name="DateTime", func=get_current_datetime,
description="Get current date/time. Options: 'date', 'time', or 'full'")
class MultiAgentSystem:
def __init__(self, api_key: str):
self.llm = ChatGoogleGenerativeAI(
model="gemini-pro",
google_api_key=api_key,
temperature=0.7,
convert_system_message_to_human=True
)
self.memory_store = {}
self.conversation_memory = ConversationBufferWindowMemory(
memory_key="chat_history", k=10, return_messages=True
)
self.tools = self._initialize_tools()
self.agent = self._create_agent()
def _initialize_tools(self):
tools = []
try:
tools.extend([
DuckDuckGoSearchRun(api_wrapper=DuckDuckGoSearchAPIWrapper()),
WikipediaQueryRun(api_wrapper=WikipediaAPIWrapper())
])
except Exception as e:
st.warning(f"Search tools may have limited functionality: {e}")
tools.append(InnovativeAgentTools.get_calculator_tool())
tools.append(InnovativeAgentTools.get_datetime_tool())
tools.extend(InnovativeAgentTools.get_memory_tool(self.memory_store))
return tools
def _create_agent(self):
prompt = PromptTemplate.from_template("""
🤖 You are an advanced AI assistant with access to multiple tools and persistent memory.
AVAILABLE TOOLS:
{tools}
TOOL USAGE FORMAT:
- Think step by step about what you need to do
- Use Action: tool_name
- Use Action Input: your input
- Wait for Observation
- Continue until you have a final answer
CONVERSATION HISTORY:
{chat_history}
CURRENT QUESTION: {input}
REASONING PROCESS:
{agent_scratchpad}
Begin your response with your thought process, then take action if needed.
""")
agent = create_react_agent(self.llm, self.tools, prompt)
return AgentExecutor(agent=agent, tools=self.tools, memory=self.conversation_memory,
verbose=True, handle_parsing_errors=True, max_iterations=5)
def chat(self, message: str, callback_handler=None):
try:
if callback_handler:
response = self.agent.invoke({"input": message}, {"callbacks": [callback_handler]})
else:
response = self.agent.invoke({"input": message})
return response["output"]
except Exception as e:
return f"Error processing request: {str(e)}"
# Streamlit App
st.set_page_config(page_title="🚀 Advanced LangChain Agent", page_icon="🤖", layout="wide")
st.markdown("""
""", unsafe_allow_html=True)
st.markdown('Powered by LangChain + Gemini API
', unsafe_allow_html=True)
with st.sidebar:
st.header("🔧 Configuration")
api_key = st.text_input("🔑 Google AI API Key", type="password", value=GOOGLE_API_KEY)
if not api_key:
st.error("Please enter your Google AI API key")
st.stop()
st.success("✅ API Key configured")
st.header("🤖 Agent Capabilities")
st.markdown("- 🔍 Web Search\\n- 📚 Wikipedia\\n- 🧮 Calculator\\n- 🧠 Memory\\n- 📅 Date/Time")
if 'agent_system' in st.session_state and st.session_state.agent_system.memory_store:
st.header("🧠 Memory Store")
for key, value in st.session_state.agent_system.memory_store.items():
st.markdown(f'{key}: {value}
', unsafe_allow_html=True)
if 'agent_system' not in st.session_state:
with st.spinner("🔄 Initializing Agent..."):
st.session_state.agent_system = MultiAgentSystem(api_key)
st.success("✅ Agent Ready!")
if 'messages' not in st.session_state:
st.session_state.messages = [{
"role": "assistant",
"content": "🤖 Hello! I'm your advanced AI assistant. I can search, calculate, remember information, and more! Try asking me to: calculate something, search for information, or remember a fact about you."
}]
for message in st.session_state.messages:
with st.chat_message(message["role"]):
st.markdown(message["content"])
if prompt := st.chat_input("Ask me anything..."):
st.session_state.messages.append({"role": "user", "content": prompt})
with st.chat_message("user"):
st.markdown(prompt)
with st.chat_message("assistant"):
callback_handler = StreamlitCallbackHandler(st.container())
with st.spinner("🤔 Thinking..."):
response = st.session_state.agent_system.chat(prompt, callback_handler)
st.markdown(f'{response}
', unsafe_allow_html=True)
st.session_state.messages.append({"role": "assistant", "content": response})
# Example buttons
st.header("💡 Try These Examples")
col1, col2, col3 = st.columns(3)
with col1:
if st.button("🧮 Calculate 15 * 8 + 32"):
st.rerun()
with col2:
if st.button("🔍 Search AI news"):
st.rerun()
with col3:
if st.button("🧠 Remember my name is Alex"):
st.rerun()
'''
with open('streamlit_app.py', 'w') as f:
f.write(app_content)
print("✅ Streamlit app file created successfully!")
if setup_ngrok_auth(NGROK_AUTH_TOKEN):
start_streamlit_with_ngrok()
else:
print("❌ Ngrok authentication failed. Trying alternative methods...")
try_alternative_tunnels()
In the run_in_colb function (), we make it easy to spread the Speremlit app directly from the Google Colab environment. We start installing all the required beams, then create and type the full Speremlit app code to the Treamlit_App.PY file. We check the presence of a good NGROK code to enable the audience access to the application from the Colab, and if it is missing or inaccurate, then we direct ourselves through the tunnel options parked. This setting allows us to interact with our artificial intelligence factor from anywhere, all within a few cells in the colum. verify Full notebook here
def start_streamlit_with_ngrok():
"""Start Streamlit with ngrok tunnel"""
import subprocess
import threading
from pyngrok import ngrok
def start_streamlit():
subprocess.run(['streamlit', 'run', 'streamlit_app.py', '--server.port=8501', '--server.headless=true'])
print("🚀 Starting Streamlit server...")
thread = threading.Thread(target=start_streamlit)
thread.daemon = True
thread.start()
time.sleep(5)
try:
print("🌐 Creating ngrok tunnel...")
public_url = ngrok.connect(8501)
print(f"🔗 SUCCESS! Access your app at: {public_url}")
print("✨ Your Advanced LangChain Agent is now running publicly!")
print("📱 You can share this URL with others!")
print("⏳ Keeping tunnel alive... Press Ctrl+C to stop")
try:
ngrok_process = ngrok.get_ngrok_process()
ngrok_process.proc.wait()
except KeyboardInterrupt:
print("👋 Shutting down...")
ngrok.kill()
except Exception as e:
print(f"❌ Ngrok tunnel failed: {e}")
try_alternative_tunnels()
def try_alternative_tunnels():
"""Try alternative tunneling methods"""
print("🔄 Trying alternative tunnel methods...")
import subprocess
import threading
def start_streamlit():
subprocess.run(['streamlit', 'run', 'streamlit_app.py', '--server.port=8501', '--server.headless=true'])
thread = threading.Thread(target=start_streamlit)
thread.daemon = True
thread.start()
time.sleep(3)
print("🌐 Streamlit is running on http://localhost:8501")
print("\n📋 ALTERNATIVE TUNNEL OPTIONS:")
print("1. localtunnel: Run this in a new cell:")
print(" !npx localtunnel --port 8501")
print("\n2. serveo.net: Run this in a new cell:")
print(" !ssh -R 80:localhost:8501 serveo.net")
print("\n3. Colab public URL (if available):")
print(" Use the 'Public URL' button in Colab's interface")
try:
while True:
time.sleep(60)
except KeyboardInterrupt:
print("👋 Shutting down...")
if __name__ == "__main__":
try:
get_ipython()
print("🚀 Google Colab detected - starting setup...")
run_in_colab()
except NameError:
main()
In this last part, we created the logic of implementation to run the application either in a local or inside Google Colab environment. Start_streamit_with_ngrok () runs the remaining server in the background and uses NGROK to expose it publicly, making it easy to access and share. In the event of NGROK, the function of Try_alternative_Tunnels () is activated with alternative tunnel options, such as Localtunnel and Servo. Using a __main__ block, we automatically discover if we are in a colum and launch the appropriate setting, making the entire publishing process smooth, flexible and shared from anywhere.
In conclusion, we will have an AI agent that works at full capacity working inside an elegant slow interface, capable of responding to the queries, remembering user inputs, and even sharing its services publicly using NGROK. We have seen how easy we can integrate advanced artificial intelligence functions into an attractive and easy -to -use application. From here, we can expand the agent tools, connect them to a larger workflow, or publish them as part of our smart applications. With the flow of agents in the front end and the Langchain that operates the logic, we have built a solid foundation for interactive intelligence experiences of the next generation.
verify Full notebook here. All the credit for this research goes to researchers in this project. Also, do not hesitate to follow us twitter And do not forget to join 100K+ ML Subreddit And subscribe to Our newsletter.
Asif Razzaq is the CEO of Marktechpost Media Inc .. As a pioneer and vision engineer, ASIF is committed to harnessing the potential of artificial intelligence for social goodness. His last endeavor is to launch the artificial intelligence platform, Marktechpost, which highlights its in -depth coverage of machine learning and deep learning news, which is technically sound and can be easily understood by a wide audience. The platform is proud of more than 2 million monthly views, which shows its popularity among the masses.

Don’t miss more hot News like this! Click here to discover the latest in AI news!
2025-06-20 07:40:00
