Implementing DeepSpeed for Scalable Transformers: Advanced Training with Gradient Checkpointing and Parallelism
In this applicant Deep speed The tutorial, we offer a practical roaming of advanced improvement techniques to efficiently train large language models. By combining zero improvement, mixed training, gradient accumulation, advanced deep ships formations, the educational program shows how to increase the use of the graphics processing unit to the maximum, reduce general expenses of training, and enable the expansion of transformer models in resource restricted environments, such as colum. In addition to creating models and training, it also covers performance monitoring, improving reasoning, formation of examination, and measuring different stages of scratch, providing practitioners theoretical visions and practical symbol to accelerate the development of the model. verify Full codes here.
import subprocess
import sys
import os
import json
import time
from pathlib import Path
def install_dependencies():
"""Install required packages for DeepSpeed in Colab"""
print("🚀 Installing DeepSpeed and dependencies...")
subprocess.check_call([
sys.executable, "-m", "pip", "install",
"torch", "torchvision", "torchaudio", "--index-url",
"https://download.pytorch.org/whl/cu118"
])
subprocess.check_call([sys.executable, "-m", "pip", "install", "deepspeed"])
subprocess.check_call([
sys.executable, "-m", "pip", "install",
"transformers", "datasets", "accelerate", "wandb"
])
print("✅ Installation complete!")
install_dependencies()
import torch
import torch.nn as nn
import torch.optim as optim
from torch.utils.data import DataLoader, Dataset
import deepspeed
from transformers import GPT2Config, GPT2LMHeadModel, GPT2Tokenizer
import numpy as np
from typing import Dict, Any
import argparseWe created the Clap environment by installing Pytorch with CUDA support, Deepspeed, and basic libraries such as Transformers, data groups, acceleration, weights and biases. We guarantee that everything is ready so that we can build models and train them smoothly with Deepspeed. verify Full codes here.

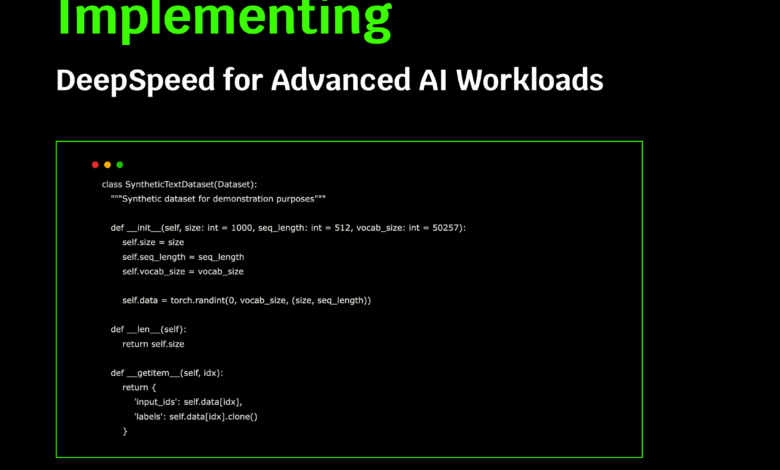

class SyntheticTextDataset(Dataset):
"""Synthetic dataset for demonstration purposes"""
def __init__(self, size: int = 1000, seq_length: int = 512, vocab_size: int = 50257):
self.size = size
self.seq_length = seq_length
self.vocab_size = vocab_size
self.data = torch.randint(0, vocab_size, (size, seq_length))
def __len__(self):
return self.size
def __getitem__(self, idx):
return {
'input_ids': self.data[idx],
'labels': self.data[idx].clone()
}We create a collection of SynthetictextDataset where we create a random symbol to imitate real text data. We use these serials as inputs and marks, allowing us to quickly test the deep speed training without relying on a large external data set. verify Full codes here.
class AdvancedDeepSpeedTrainer:
"""Advanced DeepSpeed trainer with multiple optimization techniques"""
def __init__(self, model_config: Dict[str, Any], ds_config: Dict[str, Any]):
self.model_config = model_config
self.ds_config = ds_config
self.model = None
self.engine = None
self.tokenizer = None
def create_model(self):
"""Create a GPT-2 style model for demonstration"""
print("🧠 Creating model...")
config = GPT2Config(
vocab_size=self.model_config['vocab_size'],
n_positions=self.model_config['seq_length'],
n_embd=self.model_config['hidden_size'],
n_layer=self.model_config['num_layers'],
n_head=self.model_config['num_heads'],
resid_pdrop=0.1,
embd_pdrop=0.1,
attn_pdrop=0.1,
)
self.model = GPT2LMHeadModel(config)
self.tokenizer = GPT2Tokenizer.from_pretrained('gpt2')
self.tokenizer.pad_token = self.tokenizer.eos_token
print(f"📊 Model parameters: {sum(p.numel() for p in self.model.parameters()):,}")
return self.model
def create_deepspeed_config(self):
"""Create comprehensive DeepSpeed configuration"""
return {
"train_batch_size": self.ds_config['train_batch_size'],
"train_micro_batch_size_per_gpu": self.ds_config['micro_batch_size'],
"gradient_accumulation_steps": self.ds_config['gradient_accumulation_steps'],
"zero_optimization": {
"stage": self.ds_config['zero_stage'],
"allgather_partitions": True,
"allgather_bucket_size": 5e8,
"overlap_comm": True,
"reduce_scatter": True,
"reduce_bucket_size": 5e8,
"contiguous_gradients": True,
"cpu_offload": self.ds_config.get('cpu_offload', False)
},
"fp16": {
"enabled": True,
"loss_scale": 0,
"loss_scale_window": 1000,
"initial_scale_power": 16,
"hysteresis": 2,
"min_loss_scale": 1
},
"optimizer": {
"type": "AdamW",
"params": {
"lr": self.ds_config['learning_rate'],
"betas": [0.9, 0.999],
"eps": 1e-8,
"weight_decay": 0.01
}
},
"scheduler": {
"type": "WarmupLR",
"params": {
"warmup_min_lr": 0,
"warmup_max_lr": self.ds_config['learning_rate'],
"warmup_num_steps": 100
}
},
"gradient_clipping": 1.0,
"wall_clock_breakdown": True,
"memory_breakdown": True,
"tensorboard": {
"enabled": True,
"output_path": "./logs/",
"job_name": "deepspeed_advanced_tutorial"
}
}
def initialize_deepspeed(self):
"""Initialize DeepSpeed engine"""
print("⚡ Initializing DeepSpeed...")
parser = argparse.ArgumentParser()
parser.add_argument('--local_rank', type=int, default=0)
args = parser.parse_args([])
self.engine, optimizer, _, lr_scheduler = deepspeed.initialize(
args=args,
model=self.model,
config=self.create_deepspeed_config()
)
print(f"🎯 DeepSpeed engine initialized with ZeRO stage {self.ds_config['zero_stage']}")
return self.engine
def train_step(self, batch: Dict[str, torch.Tensor]) -> Dict[str, float]:
"""Perform a single training step with DeepSpeed optimizations"""
input_ids = batch['input_ids'].to(self.engine.device)
labels = batch['labels'].to(self.engine.device)
outputs = self.engine(input_ids=input_ids, labels=labels)
loss = outputs.loss
self.engine.backward(loss)
self.engine.step()
return {
'loss': loss.item(),
'lr': self.engine.lr_scheduler.get_last_lr()[0] if self.engine.lr_scheduler else 0
}
def train(self, dataloader: DataLoader, num_epochs: int = 2):
"""Complete training loop with monitoring"""
print(f"🏋️ Starting training for {num_epochs} epochs...")
self.engine.train()
total_steps = 0
for epoch in range(num_epochs):
epoch_loss = 0.0
epoch_steps = 0
print(f"\n📈 Epoch {epoch + 1}/{num_epochs}")
for step, batch in enumerate(dataloader):
start_time = time.time()
metrics = self.train_step(batch)
epoch_loss += metrics['loss']
epoch_steps += 1
total_steps += 1
if step % 10 == 0:
step_time = time.time() - start_time
print(f" Step {step:4d} | Loss: {metrics['loss']:.4f} | "
f"LR: {metrics['lr']:.2e} | Time: {step_time:.3f}s")
if step % 20 == 0 and hasattr(self.engine, 'monitor'):
self.log_memory_stats()
if step >= 50:
break
avg_loss = epoch_loss / epoch_steps
print(f"📊 Epoch {epoch + 1} completed | Average Loss: {avg_loss:.4f}")
print("🎉 Training completed!")
def log_memory_stats(self):
"""Log GPU memory statistics"""
if torch.cuda.is_available():
allocated = torch.cuda.memory_allocated() / 1024**3
reserved = torch.cuda.memory_reserved() / 1024**3
print(f" 💾 GPU Memory - Allocated: {allocated:.2f}GB | Reserved: {reserved:.2f}GB")
def save_checkpoint(self, path: str):
"""Save model checkpoint using DeepSpeed"""
print(f"💾 Saving checkpoint to {path}")
self.engine.save_checkpoint(path)
def demonstrate_inference(self, text: str = "The future of AI is"):
"""Demonstrate optimized inference with DeepSpeed"""
print(f"\n🔮 Running inference with prompt: '{text}'")
inputs = self.tokenizer.encode(text, return_tensors="pt").to(self.engine.device)
self.engine.eval()
with torch.no_grad():
outputs = self.engine.module.generate(
inputs,
max_length=inputs.shape[1] + 50,
num_return_sequences=1,
temperature=0.8,
do_sample=True,
pad_token_id=self.tokenizer.eos_token_id
)
generated_text = self.tokenizer.decode(outputs[0], skip_special_tokens=True)
print(f"📝 Generated text: {generated_text}")
self.engine.train()We build a comprehensive coach to a party that creates a GPT-2 model, and places a deep configuration (zero, FP16, Adamw, Smitler, Tensorboard), and the engine. Then we run effective training steps with registration statistics and memory statistics, and save checkpoints, and explain the inference to verify improvement and obstetrics in one place. verify Full codes here.
def run_advanced_tutorial():
"""Main function to run the advanced DeepSpeed tutorial"""
print("🌟 Advanced DeepSpeed Tutorial Starting...")
print("=" * 60)
model_config = {
'vocab_size': 50257,
'seq_length': 512,
'hidden_size': 768,
'num_layers': 6,
'num_heads': 12
}
ds_config = {
'train_batch_size': 16,
'micro_batch_size': 4,
'gradient_accumulation_steps': 4,
'zero_stage': 2,
'learning_rate': 1e-4,
'cpu_offload': False
}
print("📋 Configuration:")
print(f" Model size: ~{sum(np.prod(shape) for shape in [[model_config['vocab_size'], model_config['hidden_size']], [model_config['hidden_size'], model_config['hidden_size']] * model_config['num_layers']]) / 1e6:.1f}M parameters")
print(f" ZeRO Stage: {ds_config['zero_stage']}")
print(f" Batch size: {ds_config['train_batch_size']}")
trainer = AdvancedDeepSpeedTrainer(model_config, ds_config)
model = trainer.create_model()
engine = trainer.initialize_deepspeed()
print("\n📚 Creating synthetic dataset...")
dataset = SyntheticTextDataset(
size=200,
seq_length=model_config['seq_length'],
vocab_size=model_config['vocab_size']
)
dataloader = DataLoader(
dataset,
batch_size=ds_config['micro_batch_size'],
shuffle=True
)
print("\n📊 Pre-training memory stats:")
trainer.log_memory_stats()
trainer.train(dataloader, num_epochs=2)
print("\n📊 Post-training memory stats:")
trainer.log_memory_stats()
trainer.demonstrate_inference("DeepSpeed enables efficient training of")
checkpoint_path = "./deepspeed_checkpoint"
trainer.save_checkpoint(checkpoint_path)
demonstrate_zero_stages()
demonstrate_memory_optimization()
print("\n🎯 Tutorial completed successfully!")
print("Key DeepSpeed features demonstrated:")
print(" ✅ ZeRO optimization for memory efficiency")
print(" ✅ Mixed precision training (FP16)")
print(" ✅ Gradient accumulation")
print(" ✅ Learning rate scheduling")
print(" ✅ Checkpoint saving/loading")
print(" ✅ Memory monitoring")
def demonstrate_zero_stages():
"""Demonstrate different ZeRO optimization stages"""
print("\n🔧 ZeRO Optimization Stages Explained:")
print(" Stage 0: Disabled (baseline)")
print(" Stage 1: Optimizer state partitioning (~4x memory reduction)")
print(" Stage 2: Gradient partitioning (~8x memory reduction)")
print(" Stage 3: Parameter partitioning (~Nx memory reduction)")
zero_configs = {
1: {"stage": 1, "reduce_bucket_size": 5e8},
2: {"stage": 2, "allgather_partitions": True, "reduce_scatter": True},
3: {"stage": 3, "stage3_prefetch_bucket_size": 5e8, "stage3_param_persistence_threshold": 1e6}
}
for stage, config in zero_configs.items():
estimated_memory_reduction = [1, 4, 8, "Nx"][stage]
print(f" 📉 Stage {stage}: ~{estimated_memory_reduction}x memory reduction")
def demonstrate_memory_optimization():
"""Show memory optimization techniques"""
print("\n🧠 Memory Optimization Techniques:")
print(" 🔄 Gradient Checkpointing: Trade compute for memory")
print(" 📤 CPU Offloading: Move optimizer states to CPU")
print(" 🗜️ Compression: Reduce communication overhead")
print(" ⚡ Mixed Precision: Use FP16 for faster training")We organize full training operation: set configuration, build a GPT-2 model and Deepspeed engine, create an artificial data set, monitor GPU, training on two times, run inference, and save a checkpoint. Then we explain the zero stages and highlight the memory improvement tactics, such as determining the gradient and emptying the central processing unit, to understand the differentials in practice. verify Full codes here.
class DeepSpeedConfigGenerator:
"""Utility class to generate DeepSpeed configurations"""
@staticmethod
def generate_config(
batch_size: int = 16,
zero_stage: int = 2,
use_cpu_offload: bool = False,
learning_rate: float = 1e-4
) -> Dict[str, Any]:
"""Generate a complete DeepSpeed configuration"""
config = {
"train_batch_size": batch_size,
"train_micro_batch_size_per_gpu": max(1, batch_size // 4),
"gradient_accumulation_steps": max(1, batch_size // max(1, batch_size // 4)),
"zero_optimization": {
"stage": zero_stage,
"allgather_partitions": True,
"allgather_bucket_size": 5e8,
"overlap_comm": True,
"reduce_scatter": True,
"reduce_bucket_size": 5e8,
"contiguous_gradients": True
},
"fp16": {
"enabled": True,
"loss_scale": 0,
"loss_scale_window": 1000,
"initial_scale_power": 16,
"hysteresis": 2,
"min_loss_scale": 1
},
"optimizer": {
"type": "AdamW",
"params": {
"lr": learning_rate,
"betas": [0.9, 0.999],
"eps": 1e-8,
"weight_decay": 0.01
}
},
"scheduler": {
"type": "WarmupLR",
"params": {
"warmup_min_lr": 0,
"warmup_max_lr": learning_rate,
"warmup_num_steps": 100
}
},
"gradient_clipping": 1.0,
"wall_clock_breakdown": True
}
if use_cpu_offload:
config["zero_optimization"]["cpu_offload"] = True
config["zero_optimization"]["pin_memory"] = True
if zero_stage == 3:
config["zero_optimization"].update({
"stage3_prefetch_bucket_size": 5e8,
"stage3_param_persistence_threshold": 1e6,
"stage3_gather_16bit_weights_on_model_save": True
})
return config
def benchmark_zero_stages():
"""Benchmark different ZeRO stages"""
print("\n🏁 Benchmarking ZeRO Stages...")
model_config = {
'vocab_size': 50257,
'seq_length': 256,
'hidden_size': 512,
'num_layers': 4,
'num_heads': 8
}
results = {}
for stage in [1, 2]:
print(f"\n🔬 Testing ZeRO Stage {stage}...")
ds_config = {
'train_batch_size': 8,
'micro_batch_size': 2,
'gradient_accumulation_steps': 4,
'zero_stage': stage,
'learning_rate': 1e-4
}
try:
trainer = AdvancedDeepSpeedTrainer(model_config, ds_config)
model = trainer.create_model()
engine = trainer.initialize_deepspeed()
if torch.cuda.is_available():
torch.cuda.reset_peak_memory_stats()
dataset = SyntheticTextDataset(size=20, seq_length=model_config['seq_length'])
dataloader = DataLoader(dataset, batch_size=ds_config['micro_batch_size'])
start_time = time.time()
for i, batch in enumerate(dataloader):
if i >= 5:
break
trainer.train_step(batch)
end_time = time.time()
peak_memory = torch.cuda.max_memory_allocated() / 1024**3
results[stage] = {
'peak_memory_gb': peak_memory,
'time_per_step': (end_time - start_time) / 5
}
print(f" 📊 Peak Memory: {peak_memory:.2f}GB")
print(f" ⏱️ Time per step: {results[stage]['time_per_step']:.3f}s")
del trainer, model, engine
torch.cuda.empty_cache()
except Exception as e:
print(f" ❌ Error with stage {stage}: {str(e)}")
if len(results) > 1:
print(f"\n📈 Comparison:")
stage_1_memory = results.get(1, {}).get('peak_memory_gb', 0)
stage_2_memory = results.get(2, {}).get('peak_memory_gb', 0)
if stage_1_memory > 0 and stage_2_memory > 0:
memory_reduction = (stage_1_memory - stage_2_memory) / stage_1_memory * 100
print(f" 🎯 Memory reduction from Stage 1 to 2: {memory_reduction:.1f}%")
def demonstrate_advanced_features():
"""Demonstrate additional advanced DeepSpeed features"""
print("\n🚀 Advanced DeepSpeed Features:")
print(" 🎚️ Dynamic Loss Scaling: Automatically adjusts FP16 loss scaling")
print(" 🗜️ Gradient Compression: Reduces communication overhead")
print(" 🔄 Pipeline Parallelism: Splits model across devices")
print(" 🧑🎓 Expert Parallelism: Efficient Mixture-of-Experts training")
print(" 📚 Curriculum Learning: Progressive training strategies")
if __name__ == "__main__":
print(f"🖥️ CUDA Available: {torch.cuda.is_available()}")
if torch.cuda.is_available():
print(f" GPU: {torch.cuda.get_device_name()}")
print(f" Memory: {torch.cuda.get_device_properties(0).total_memory / 1024**3:.1f}GB")
try:
run_advanced_tutorial()
benchmark_zero_stages()
demonstrate_advanced_features()
except Exception as e:
print(f"❌ Error during tutorial: {str(e)}")
print("💡 Tips for troubleshooting:")
print(" - Ensure you have GPU runtime enabled in Colab")
print(" - Try reducing batch_size or model size if facing memory issues")
print(" - Enable CPU offloading in ds_config if needed")We create deep -use deep speed configurations, standard zero stages to compare memory and speed, and display advanced features such as the scaling of dynamic loss and the pipeline parallel/MEE. We also discover Cuda, and we manage the full to the tip, and provide clear advice to repair it, allowing us to repeat with confidence in Colab.
In conclusion, we gain a comprehensive understanding of how to enhance the deep speed that enhances the efficiency of typical training by achieving a balance between performance and memory bodies. From taking advantage of the zero stages to reduce memory to the FP16 mixed accuracy application and unloading the CPU, the tutorial displays strong strategies that make large -scale training available on modest devices. By the end, learners will have trained and improved a GPT model, normative configurations, monitoring GPU, exploring advanced features such as parallel pipeline and gradient pressure.
verify Full codes here. Do not hesitate to check our GitHub page for lessons, symbols and notebooks. Also, do not hesitate to follow us twitter And do not forget to join 100K+ ML Subreddit And subscribe to Our newsletter.
Asif Razzaq is the CEO of Marktechpost Media Inc .. As a pioneer and vision engineer, ASIF is committed to harnessing the potential of artificial intelligence for social goodness. His last endeavor is to launch the artificial intelligence platform, Marktechpost, which highlights its in -depth coverage of machine learning and deep learning news, which is technically intact and can be easily understood by a wide audience. The platform is proud of more than 2 million monthly views, which shows its popularity among the masses.
Don’t miss more hot News like this! Click here to discover the latest in AI news!
2025-09-06 23:57:00
